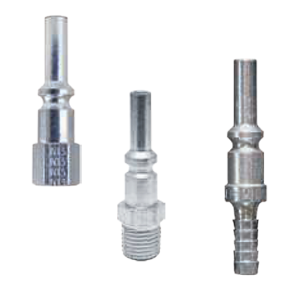

    1/4" Plugs-Lincoln Int.
    Description

    Foster LN Series couplings are interchangeable with Lincoln’s “Long Nose” series couplings and offer quick coupling of all air-operated equipment. They are only available in 1⁄4" body size, brass and steel construction.

    Features

    Features:

    • Locking feature prevents accidental coupler detachment
    • Increased air flow due to a larger air passage
    • Automatic air check valve shuts off air instantly when uncoupled, providing leak-proof seal
    • Corrosion-resistant steel for long service life
    • Free swivel helps prevent kinking or curling of air hoses

    Specifications:

    • Type: One Way Shut-Off
    • Rated Pressure: 300 PSIG
    • Temperature Range (std seals): -40° to +250°F
    • Locking Device: Balls or pins

    Operation:

    • Manual - socket sleeve must be retracted to connect and disconnect
    • Automatic - Push to Connect, retract socket sleeve to disconnect
